Description:

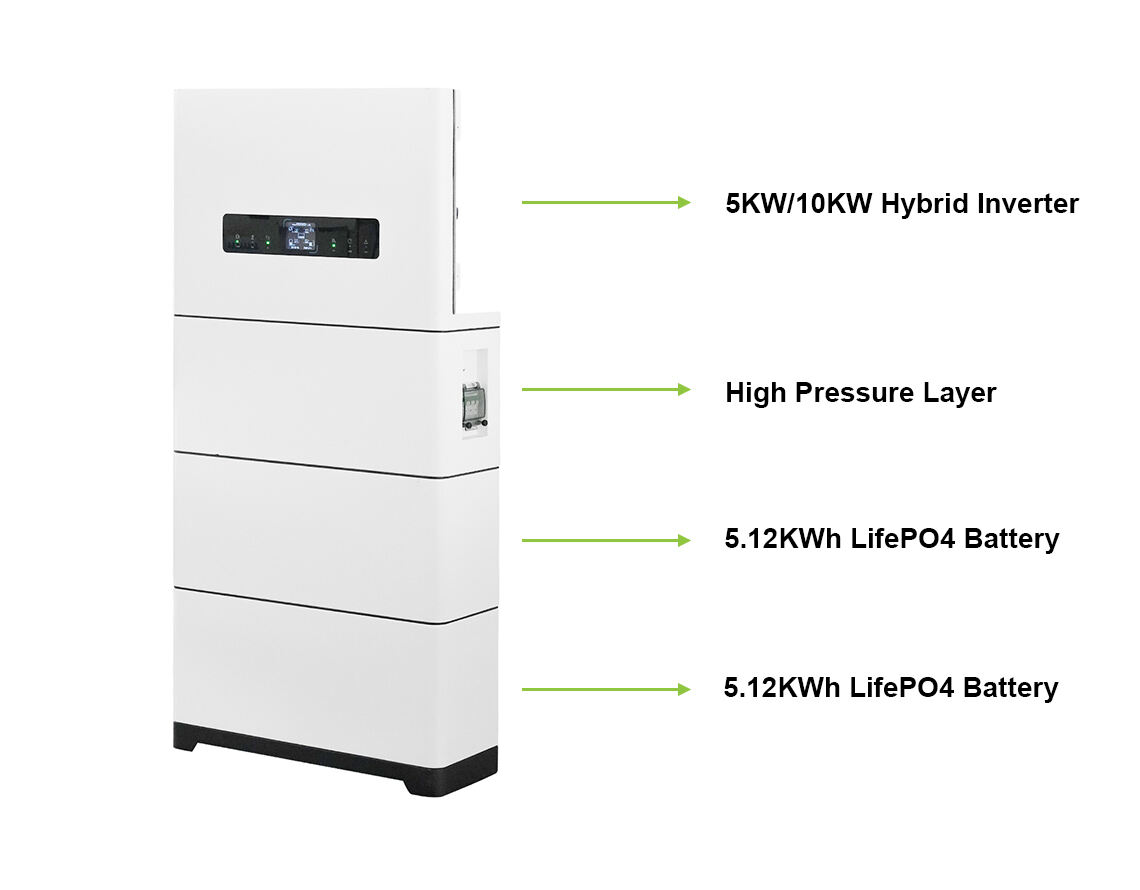

The high - voltage stackable LiFePO4 lithium battery is designed with modular. Each unit is 102.4v 50Ah 5KWh, light in weight, and easy to install. The smart BMS of the stackable LiFePO4 battery supports the battery to communicate with more than 30 brands of inverters by CAN / RS485 terminals. The movable and stackable features make the high - voltage LiFePO4 lithium battery a premium choice for Home energy power storage systems, villas, and solar power systems. If you want to get the bulk price, feel free to Contact Us for more details.
Specifications:
| Model | HPIXP - P5KW | HPIXP - P10KW |
| Battery Type | Lifepo4 Soft Battery Cell | Lifepo4 Soft Battery Cell |
| Basic Parameters | Inverter layer X 1 | Inverter layer X 1 |
| High Pressure layer | High Pressure layer X 1 | High Pressure layer X 1 |
| Battery Layer | Battery Layer * Modular Quantity | Battery Layer * Modular Quantity |
| Nominal Capacity | 5.12KWh (* Modular Quantity) | 5.12KWh (* Modular Quantity) |
| Nominal Voltage | 102.4V (* Modular Quantity) | 102.4V (* Modular Quantity) |
| Working temperature range | 0 ~ 55°C (32°F - 131°F) | 0 ~ 55°C (32°F - 131°F) |
| Degree of protection | IP65 | IP65 |
| Cooling way | Natural convection | Natural convection |
| BMS Communication | CAN/RS485/WIFI | CAN/RS485/WIFI |
| Design Life | 10 Years (25°C) | 10 Years (25°C) |
| Input(PV) Parameters | 7500W | 15000W |
| Max PV Power | ||
| Max PV Voltage | 1000V d.c. | 1000V d.c. |
| MPPT Voltage Range | 200 - 850V d.c. | 200 - 850V d.c. |
| Max input current/per string | 13A/13A | 13A/13A |
| Battery Input | 130 - 700V | 130 - 700V |
| Battery Voltage Range | ||
| Max charge/discharge current | 25A/25A | 25A/25A |
| AC Output(on - grid) | 5000VA | 10000VA |
| AC nominal power | ||
| Max AC apparent power | 5500VA | 11000VA |
| Max output current | 10 | 17 |
| Nominal AC Output | 50/60Hz; 400/350V | 50/60Hz; 400/350V |
| AC Output Range | 45/55Hz; 280 - 490Vac(Adj) | 45/55Hz; 280 - 490Vac(Adj) |
| AC Output Back - up | 5000VA | 10000VA |
| Max AC apparent power | ||
| Nominal Output Voltage | 400/380V | 400/380V |
| Nominal Output Frequency | 50/60Hz | 50/60Hz |
Applications:
Stack Battery in GreenPower
GreenPower is an experienced LiFePO4 battery manufacturer. We provide a wide range of energy storage solutions for various customers catering to applications such as residential, commercial, and industrial energy storage. GreenPower stackable LiFePO4 batteries are produced with high standard. LiFePO4 battery technology has over 10 years of service life. Designed with wheels, they are easy to install and move. The built - in BMS protection board provides comprehensive protections for the stackable batteries. Self - heating, and wifi remote monitoring functions are available. GreenPower's advanced automatic product line and experienced research and development department ensure you highly durable stacked lithium batteries with high safety. OEM and ODM services are available.
Video：
Advantages：
COMPACT DESIGN
Easy for Installation
GreenPower uses excellent safe stackable lithium batteries to manufacture high - voltage stackable batteries. This high - voltage lithium battery is designed with modular, easy to install, light in weight, and can be easily expanded to 5.12KWh, 10.24KWh, 15.36KWh, and 20.48kWh. The built - in soft - start function of the high - voltage lithium battery can reduce the current impact. The hybrid inverter of the stackable all - in - one energy storage system eliminates the need to worry about communication protocols. GreenPower wholesale high - voltage battery and inverter in all - in - one mode, feel free to reach out.
USAGE
Application Case

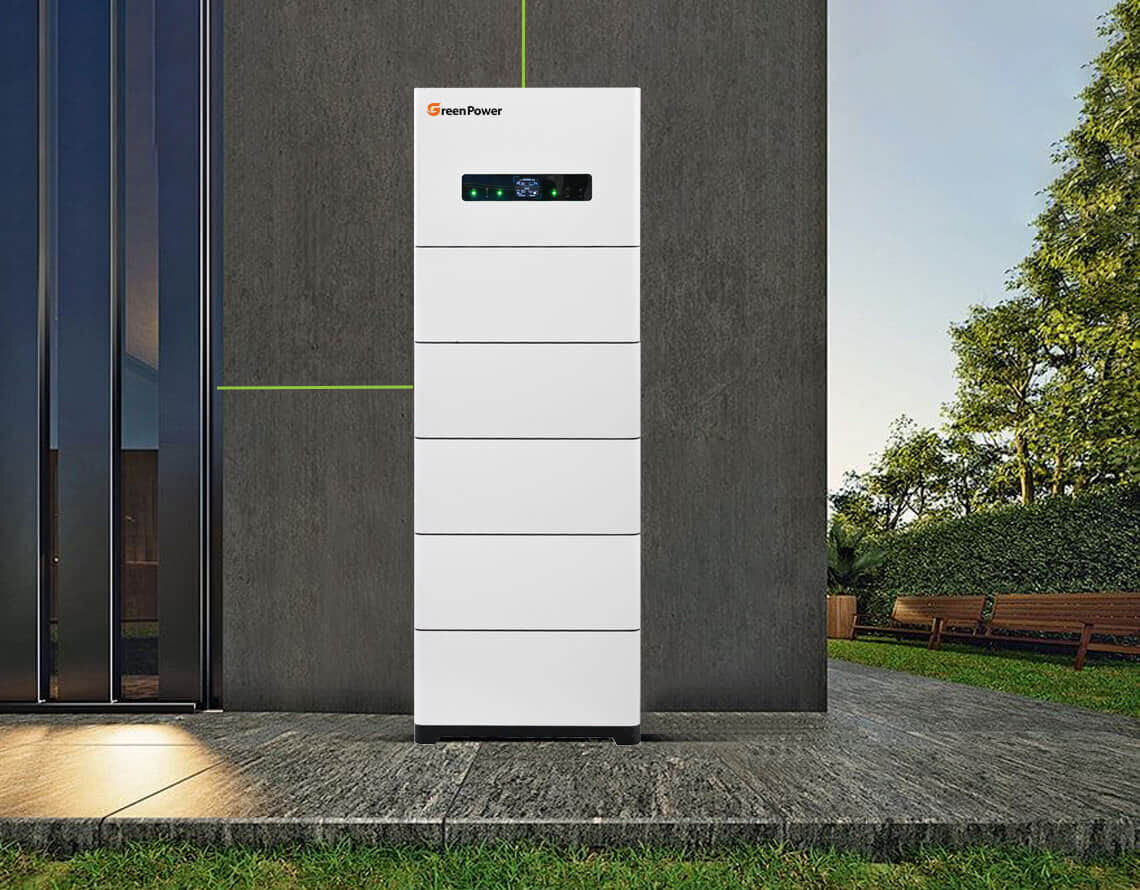

This is one type of the all - in - one energy storage system, the high - voltage lithium - ion battery pack integrated with the hybrid inverter, which can be charged in three ways: utility grid, generator, and solar panels. With its sturdy shell and IP54 ingress protection rate, the stacked LiFePO4 battery can be installed outdoors. It has been popular among end users and widely used in the following application areas:
FAQ：
Can a lithium battery measure high voltage?
The high - voltage lithium battery pack itself can not measure the voltage. It is the power device to store and deliver energy. You can view the voltage data through the battery management system (BMS) which is built inside the high - voltage lithium battery, or you can use specialized voltage meters to monitor and manage the voltage of the batteries.
Can I mix lithium higher - voltage batteries with alkaline?
It is not recommended to mix high - voltage lithium batteries with alkaline batteries in the same device, especially high - voltage batteries. Here are the key reasons:
1.Voltage Differences: Lithium batteries have a higher nominal voltage than alkaline batteries. If you mix them together, it will cause uneven current flow, which will damage your device.
2.Discharge Rates: High - voltage lithium batteries discharge more consistently and maintain the voltage over a long period, while alkaline batteries will gradually drop the voltage as they discharge. When you connect them mixed, it will lead to uneven performance.
3.Risk of Damage: When the high - voltage lithium batteries and alkaline batteries are connected in series, the uneven voltage can force some batteries to overwork, which will overheat, damage the lithium cells and alkaline cells.
4. Chemistry Incompatibility: Lithium and alkaline batteries have different internal chemistries and are not designed to work together. Mixing them together will lead to instability, leakage, and safety hazards.
